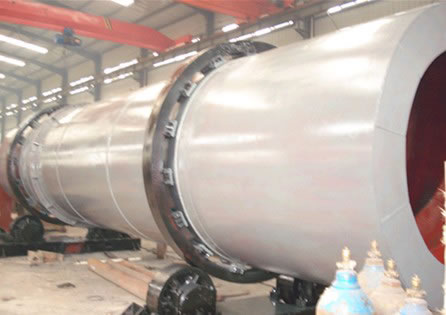

GZ回轉式干燥機
| 規格型號 | 產量(t/h) | 筒體轉速 | 筒體斜度 | 主電機 | 主減速機 | 重量 | |
| 型號 | 功率 | ||||||
| 1.5×14 | 5.0-10 | 3.30 | 2.5° | Y180L-6 | 15.0 | ZL70-40 | 20.5 |
| 1.8×14 | 6.0-12 | 3.10 | 2.5° | Y200L1-6 | 18.5 | ZSY200-40 | 25.2 |
| 1.8×18 | 6.5-13 | 4.14 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 29.0 |
| 2.0×18 | 7.0-14 | 3.30 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 39.6 |
| 2.0×20 | 7.5-15 | 3.30 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 42.5 |
| 2.2×22 | 8.0-16 | 3.30 | 3.5% | Y250M-6 | 37.0 | ZSY250-35.5 | 49.0 |
| 2.4×22 | 10-20 | 3.30 | 2.5° | Y280S-6 | 37.0 | ZSY224-25 | 65.5 |
| 2.6×24 | 12-24 | 3.20 | 2.5° | Y280S-6 | 45.0 | ZL85-40 | 75.6 |
| 2.6×26 | 14-28 | 3.60 | 2.5° | Y280M-6 | 55.0 | ZSY315-31.5 | 83.6 |
| 2.8×24 | 15-30 | 3.85 | 3.0% | Y315S-6 | 75.0 | ZSY315-35.5 | 94.6 |
| 2.8×28 | 16-32 | 3.20 | 2.5° | Y315S-6 | 90.0 | ZSY355-Ⅱ35.5 | 98.6 |
| 3.0×26 | 18-36 | 4.20 | 3.5% | Y315M-6 | 90.0 | ZSY315-31.5 | 98.8 |
| 3.0×28 | 20-40 | 4.30 | 3.5% | Y315S-4 | 110 | ZSY315-45 | 110 |
| 3.0×30 | 25-50 | 3.85 | 3.5% | Y315L1-6 | 110 | ZSY355-35.5 | 115 |
| 3.2×26 | 25-50 | 3.45 | 2.5° | Y315M-4 | 110 | ZSY450 | 130 |
| 3.2×30 | 28-35 | 3.45 | 2.5° | Y315L2-6 | 132 | ZSY355-35.5 | 145 |
| 3.4×26 | 25-50 | 3.25 | 2.5° | Y315M1-6 | 132 | ZSY355-35.5 | 158 |
| 3.4×30 | 28-55 | 3.18 | 3.0% | Y355M1-6 | 160 | ZSY400-35.5 | 168 |
| 3.4×34 | 30-60 | 3.20 | 3.0% | Y315M-4 | 185 | ZSY400-31.5 | 182.5 |
| 3.6×28 | 35-70 | 3.18 | 2.0° | YCT400-4A | 160 | ZSY500-45 | 175 |
| 3.6×30 | 40-80 | 3.18 | 2.0° | Y315M-4 | 185 | ZSY400-31.5 | 178 |
| 3.6×34 | 45-90 | 3.18 | 2.0° | Y355S2-4 | 200 | ZSY500-45 | 189 |
| 3.7×31 | 50-100 | 2.00 | 2.5% | YKK355-4 | 185 | ZSY500-35.5 | 189.5 |
| 3.8×30 | 50-100 | 3.18 | 2.5° | Y355S2-4 | 200 | ZSY500-35.5 | 210 |
| 4.0×30 | 65-130 | 3.18 | 2.5° | Y355SL-6 | 220 | ZSY500-35.5 | 221 |
| 4.0×34 | 70-140 | 2.50 | 3.0% | YJS355L-6 | 250 | ZSY560-40 | 235 |
| 4.2×32 | 80-160 | 2.50 | 3.0% | YJS355L-6 | 250 | ZSY560-40 | 250.5 |
| 4.2×36 | 85-170 | 2.09 | 3.0% | YKK400-4 | 400 | ZSY630-45 | 260 |
| 4.3×33 | 85-170 | 3.40 | 3.2% | Y400-4 | 450 | ZSY630-45 | 256 |
| 4.5×30 | 90-180 | 3.40 | 2.5° | Y400-4 | 450 | ZSY630-45 | 279 |
| 4.5×35 | 100-200 | 2.20 | 2.5° | YJS500-6 | 500 | ZSY630-45 | 297.0 |
注：1、入料水分：2-6%，終水分：1-3%；
2、進口溫度：150-350℃，出口溫度：70-90℃；
3、生產能力由于產品的組成成分不同及工藝條件的不同而變化；
